Height DTM 10

Digital terrain model with heights in a 10 x 10-metre grid. The terrain model is a grid model with a resolution (grid size) of 10 x 10 metres.


Accuracy:

± 2 to 3 metres standard deviation in height depending on terrain and map data age in the FKB A – C area.

± 4 to 6 metres standard deviation in height depending on terrain and map data age outside the FKB A – C area.

Simple

Date (Creation)
2008-09-01
Date (Publication)
2013-08-05
Date (Revision)
2018-01-26
Unique resource identifier
dtm10_utm33
Purpose

Nationwide terrain model.
Status
Required
Resource provider
  Kartverket
Owner
  Norwegian Mapping Authority - Andreas Korsnes
Publisher
  Norwegian Mapping Authority - Andreas Korsnes
Maintenance and update frequency
Irregular
GEMET - INSPIRE themes, version 1.0

  • Høyde
Nasjonal inndeling i geografiske initiativ og SDI-er

  • Inspire

  • Geodata Act

  • Norway Digital

  • Beredskapsbase

  • NSDI data

  • Felles datakatalog
Nasjonal tematisk inndeling (DOK-kategori)

  • Høydedata
Place

  • Norge fastland
Theme

  • DTM

  • elevation model

  • Terrengmodell

  • digital terrain model

  • DEM

  • elevation

  • Landsdekkende
Spatial scope
Specific usage

The terrain model is suitable for various kinds of terrain visualisation for production of elevations and mountain shadow, for example. It is also suitable for calculating terrain slopes and terrain profiles and for basic mapping of areas where there is a risk of landslides. The terrain model is also used in flight simulators and to identify coverage areas for radar, TV and mobile phone services.


Terrain models are absolutely necessary for geometric correction when producing orthophotos.
Owner

Use limitation

På utenlandsk side finnes noe data av usikker kvalitet. Det henvises til nabolandenes Kartverk for offisielle data i disse områdene.
Access constraints
Other restrictions
Other constraints
Åpne data
Use constraints
Other restrictions
Other constraints
Creative Commons BY 4.0 (CC BY 4.0)
Classification
Unclassified
Spatial representation type
Grid
Denominator
10000
Metadata language
Norwegian
Topic category
  • Elevation
N
S
E
W

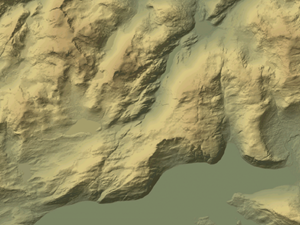

thumbnail


Begin date
0001-01-01
Supplemental Information

http://www.kartverket.no/data/Kartdata/Terrengmodeller/Terrengmodell-10-meters-grid/


The Terrain Model WMS service provides information on the nationwide terrain model (DTM 10)

There are two layers which indicate the areas in which the various datasets are used to build up the terrain model. Use the map application in Geonorge to display this service
Unique resource identifier
EPSG:25833
Distribution format
OnLine resource
https://nedlasting.test.geonorge.no/api/capabilities/ ( GEONORGE:DOWNLOAD )
Hierarchy level
Dataset

Domain consistency

Conformance result

Date (Publication)
2010-12-08
Date
Explanation

The data is not evaluated according to the product specification

Conformance result

Date (Publication)
2019-08-30
Date
Explanation

The data is not evaluated according to the product specification

Conformance result

Date
Date
Explanation

Angir fullstendighet i forhold til krav fra FAIR-prinsippene (The FAIR Guiding Principles for scientific data management and stewardship)
File identifier
dddbb667-1303-4ac5-8640-7ec04c0e3918 XML
Metadata language
Norwegian
Hierarchy level
Dataset
Date stamp
2024-05-29
Metadata standard name

ISO19115
Metadata standard version

2003
Point of contact
  Norwegian Mapping Authority - Andreas Korsnes



Overviews

overview
thumbnail
overview
large_thumbnail

Spatial extent

N
S
E
W
thumbnail


Keywords

DEM DTM Landsdekkende Terrengmodell digital terrain model elevation elevation model
